Getting Started With Market Data
Coin Metrics Market Data Feed provides access to historical and real-time data from the world’s leading spot and derivatives crypto exchanges. We offer all of the fundamental market-related data types including tick-by-tick trades, quotes, order book snapshots, candles, and more.
The example charts showcased in this notebook are presented on a weekly basis in our State of the Market newsletter.
Resources
This notebook demonstrates basic functionality offered by the Coin Metrics Python API Client and Market Data Feed.
Coin Metrics offers a vast assortment of data for hundreds of cryptoassets. The Python API Client allows for easy access to this data using Python without needing to create your own wrappers using requests and other such libraries.
To understand the data that Coin Metrics offers, feel free to peruse the resources below.
The Coin Metrics API v4 website contains the full set of endpoints and data offered by Coin Metrics.
The Coin Metrics Product Docs gives detailed, conceptual explanations of the data that Coin Metrics offers.
The Python API Client Spec contains a full list of functions..
Setup
from os import environ
import sys
from datetime import date, datetime, timedelta
import logging
import pandas as pd
import numpy as np
import seaborn as sns
from coinmetrics.api_client import CoinMetricsClient
import logging
import matplotlib.pyplot as plt
%matplotlib inlinesns.set_theme()
sns.set(rc={"figure.figsize":(12,8)})
# pd.set_option("display.notebook_repr_html", False)logging.basicConfig(
format="%(asctime)s %(levelname)-8s %(message)s",
level=logging.INFO,
datefmt="%Y-%m-%d %H:%M:%S"
)# We recommend privately storing your API key in your local environment.
try:
api_key = environ["CM_API_KEY"]
logging.info("Using API key found in environment")
except KeyError:
api_key = ""
logging.info("API key not found. Using community client")
client = CoinMetricsClient(api_key)2024-10-25 14:48:22 INFO Using API key found in environmentReference Data/Catalog Endpoints
The catalog endpoints display the set of data available to your API key. The catalog-all endpoints display the full set of data for our data set.
btc_market_catalog = client.reference_data_markets(
base="btc",
type="spot",
exchange="binance"
).to_dataframe()
btc_market_catalog.tail(5) market exchange base quote pair symbol \
26 binance-btc-usdt-spot binance btc usdt btc-usdt BTCUSDT
27 binance-btc-ust-spot binance btc ust btc-ust BTCUST
28 binance-btc-vai-spot binance btc vai btc-vai <NA>
29 binance-btc-vai_vai-spot binance btc vai_vai btc-vai_vai BTCVAI
30 binance-btc-zar-spot binance btc zar btc-zar BTCZAR
type size_asset margin_asset strike ... order_price_increment \
26 spot <NA> <NA> <NA> ... 0.01
27 spot <NA> <NA> <NA> ... 0.01
28 spot <NA> <NA> <NA> ... <NA>
29 spot <NA> <NA> <NA> ... 0.01
30 spot <NA> <NA> <NA> ... 1.0
order_price_min order_price_max order_size_min order_taker_fee \
26 0.01 1000000 5 <NA>
27 0.01 1000000 10 <NA>
28 <NA> <NA> <NA> <NA>
29 0.01 1000000 10 <NA>
30 1.0 99928191 100 <NA>
order_maker_fee margin_trading_enabled experimental base_native \
26 <NA> <NA> <NA> <NA>
27 <NA> <NA> <NA> <NA>
28 <NA> <NA> <NA> <NA>
29 <NA> <NA> <NA> <NA>
30 <NA> <NA> <NA> <NA>
quote_native
26 <NA>
27 <NA>
28 <NA>
29 <NA>
30 <NA>
[5 rows x 39 columns]print(f"Market reference_data metadata includes: {list(btc_market_catalog.keys())}")Market catalog metadata includes: ['market', 'exchange', 'base', 'quote', 'pair', 'symbol', 'type', 'size_asset', 'margin_asset', 'strike', 'option_contract_type', 'is_european', 'contract_size', 'tick_size', 'multiplier_size', 'listing', 'expiration', 'settlement_price', 'pool_config_id', 'contract_address', 'fee', 'price_includes_fee', 'variable_fee', 'base_address', 'quote_address', 'status', 'order_amount_increment', 'order_amount_min', 'order_amount_max', 'order_price_increment', 'order_price_min', 'order_price_max', 'order_size_min', 'order_taker_fee', 'order_maker_fee', 'margin_trading_enabled', 'experimental', 'base_native', 'quote_native']Example 1: Returns by coin in the CM Reference Rates universe
We offer reference rates quoted in USD, Euro, Bitcoin, and Ethereum. We now support these quote currencies for our entire reference rates coverage universe which can be found on coverage.coinmetrics.io

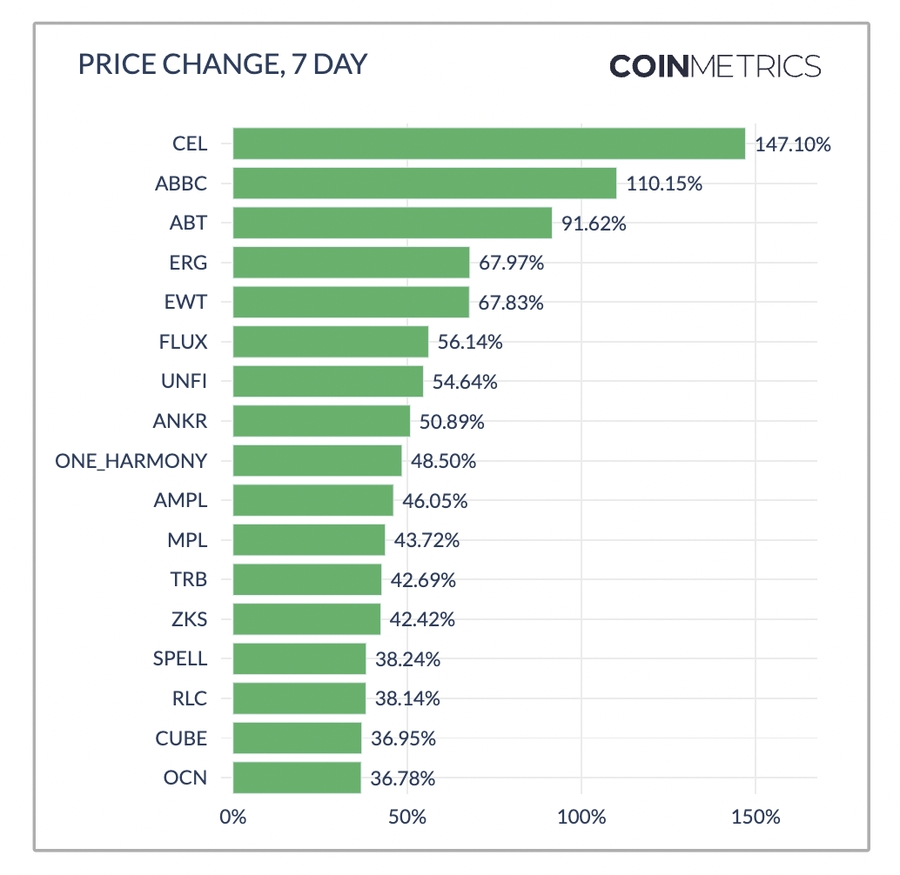

Fig. 1 - 7 Day Price Change chart from State of the Market
# Get all assets that have a reference rate
assets_refrate = client.catalog_asset_metrics_v2(metrics="ReferenceRateUSD").to_dataframe()
assets_refrate[["metric","frequency","asset"]] metric frequency asset
0 ReferenceRateUSD 1s 1cat
1 ReferenceRateUSD 1m 1cat
2 ReferenceRateUSD 1h 1cat
3 ReferenceRateUSD 1d 1cat
4 ReferenceRateUSD 1d-ny-close 1cat
... ... ... ...
6060 ReferenceRateUSD 1s ztx_ztx
6061 ReferenceRateUSD 1m ztx_ztx
6062 ReferenceRateUSD 1h ztx_ztx
6063 ReferenceRateUSD 1d ztx_ztx
6064 ReferenceRateUSD 1d-ny-close ztx_ztx
[6065 rows x 3 columns]print("\nNumber of unique Reference Rate assets: " + str(len(pd.unique(assets_refrate["asset"])))+"\n")Number of unique Reference Rate assets: 1213We can retrieve Reference Rates from the get_asset_metrics endpoint. The code snippets below demonstrate how to do this with a small list of assets.
# Retrieve Reference Rate
df_prices = client.get_asset_metrics(
assets=["btc", "eth", "bnb", "ada", "doge", "xrp"],
metrics="ReferenceRateUSD",
frequency="1d",
start_time="2022-08-10",
end_time="2022-08-17"
).to_dataframe()
# Reshape dataset so assets are in columns, dates are the rows, and the values are prices
df_prices_pivot = df_prices.pivot(index="time",columns="asset",values="ReferenceRateUSD")df_prices_pivot.head(3)asset ada bnb btc doge \
time
2022-08-10 00:00:00+00:00 0.514033 325.442291 23186.291746 0.069148
2022-08-11 00:00:00+00:00 0.536694 328.034925 23923.058483 0.071153
2022-08-12 00:00:00+00:00 0.530497 323.337253 23934.439056 0.0708
asset eth xrp
time
2022-08-10 00:00:00+00:00 1703.992249 0.368363
2022-08-11 00:00:00+00:00 1850.829961 0.380704
2022-08-12 00:00:00+00:00 1878.113096 0.379859 # Index each asset"s time series to 1
for col in df_prices_pivot.columns:
logging.info(f"Calculating returns for {col}....")
first_price = df_prices_pivot[df_prices_pivot[col].notnull()][col].iloc[0]
df_prices_pivot[col] = df_prices_pivot[col]/first_price
df_prices_pivot[col] = df_prices_pivot[col].ffill()2024-10-25 14:48:25 INFO Calculating returns for ada....
2024-10-25 14:48:25 INFO Calculating returns for bnb....
2024-10-25 14:48:25 INFO Calculating returns for btc....
2024-10-25 14:48:25 INFO Calculating returns for doge....
2024-10-25 14:48:25 INFO Calculating returns for eth....
2024-10-25 14:48:25 INFO Calculating returns for xrp....df_prices_pivotasset ada bnb btc doge eth \
time
2022-08-10 00:00:00+00:00 1.0 1.0 1.0 1.0 1.0
2022-08-11 00:00:00+00:00 1.044084 1.007966 1.031776 1.028991 1.086173
2022-08-12 00:00:00+00:00 1.032028 0.993532 1.032267 1.023896 1.102184
2022-08-13 00:00:00+00:00 1.051484 1.005325 1.052187 1.046478 1.147176
2022-08-14 00:00:00+00:00 1.089703 0.995682 1.053477 1.054227 1.162703
2022-08-15 00:00:00+00:00 1.110819 0.976807 1.048646 1.183001 1.136355
2022-08-16 00:00:00+00:00 1.070279 0.980408 1.038715 1.106155 1.116053
2022-08-17 00:00:00+00:00 1.0852 0.971739 1.029437 1.257445 1.101305
asset xrp
time
2022-08-10 00:00:00+00:00 1.0
2022-08-11 00:00:00+00:00 1.033501
2022-08-12 00:00:00+00:00 1.031207
2022-08-13 00:00:00+00:00 1.030523
2022-08-14 00:00:00+00:00 1.025361
2022-08-15 00:00:00+00:00 1.021364
2022-08-16 00:00:00+00:00 1.017113
2022-08-17 00:00:00+00:00 1.023202 Example 2: Spot trading volume on Coinbase

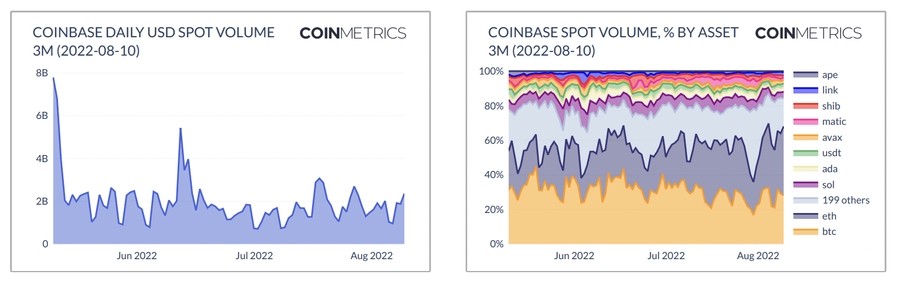

Fig. 2 - Coinbase daily spot volume breakdown from State of the Market
Foundational Data Types - Trades
Trades are one of the foundational data types we collect from exchanges. From raw trades data, we can construct additional aggregated metrics.
coinbase_btc_trades = client.get_market_trades(
markets="coinbase-btc-usd-spot",
limit_per_market=5,
paging_from="end"
).to_dataframe()coinbase_btc_trades market time coin_metrics_id \
0 coinbase-btc-usd-spot 2024-10-25 19:48:24.188784+00:00 706142046
1 coinbase-btc-usd-spot 2024-10-25 19:48:24.188784+00:00 706142047
2 coinbase-btc-usd-spot 2024-10-25 19:48:24.767882+00:00 706142048
3 coinbase-btc-usd-spot 2024-10-25 19:48:25.158094+00:00 706142049
4 coinbase-btc-usd-spot 2024-10-25 19:48:25.570517+00:00 706142050
amount price database_time side
0 0.00721 66854.87 2024-10-25 19:48:24.787998+00:00 sell
1 0.00758 66854.01 2024-10-25 19:48:24.787998+00:00 sell
2 0.000341 66854.02 2024-10-25 19:48:25.557208+00:00 buy
3 0.001426 66849.19 2024-10-25 19:48:26.096516+00:00 buy
4 0.004 66846.31 2024-10-25 19:48:26.096516+00:00 sell Spot Volume Share - Candles Data
From raw trades data, we construct OHLC candles for each market. For our Spot Volume % by Asset chart, we derive volume from our get_market_candles endpoint.
All of our endpoints that accept the markets parameter will accept wildcards like exchange-* or exchange-*-spot or *USDT-future. The wildcards will match any market which fits this pattern so users do not need to specify every individual market when querying data for multiple markets.
candles_coinbase = client.get_market_candles(
markets="coinbase-*-spot", # wildcards can be passed to get all asset pairs
start_time="2022-08-16",
end_time="2022-08-17",
frequency="1d"
).to_dataframe()
candles_coinbase.info()<class 'pandas.core.frame.DataFrame'>
RangeIndex: 1046 entries, 0 to 1045
Data columns (total 10 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 market 1046 non-null string
1 time 1046 non-null datetime64[ns, UTC]
2 price_open 1046 non-null Float64
3 price_close 1046 non-null Float64
4 price_high 1046 non-null Float64
5 price_low 1046 non-null Float64
6 vwap 1046 non-null Float64
7 volume 1046 non-null Float64
8 candle_usd_volume 1046 non-null Float64
9 candle_trades_count 1046 non-null Int64
dtypes: Float64(7), Int64(1), datetime64[ns, UTC](1), string(1)
memory usage: 90.0 KBcandles_coinbase.head() market time price_open price_close \
0 coinbase-1inch-btc-spot 2022-08-16 00:00:00+00:00 0.000034 0.000034
1 coinbase-1inch-btc-spot 2022-08-17 00:00:00+00:00 0.000034 0.000033
2 coinbase-1inch-eur-spot 2022-08-16 00:00:00+00:00 0.807 0.805
3 coinbase-1inch-eur-spot 2022-08-17 00:00:00+00:00 0.805 0.755
4 coinbase-1inch-gbp-spot 2022-08-16 00:00:00+00:00 0.679 0.677
price_high price_low vwap volume candle_usd_volume \
0 0.000035 0.000034 0.000034 12601.82 10324.267565
1 0.000035 0.000033 0.000034 6400.08 5251.890725
2 0.82 0.795 0.807773 62791.36 51499.294594
3 0.828 0.752 0.78722 56349.99 45122.160088
4 0.691 0.669 0.680058 16631.32 13651.391996
candle_trades_count
0 204
1 226
2 475
3 478
4 67 price_open: The opening price of the candle.
price_high: The high price of the candle.
price_low: The low price of the candle.
price_close: The close price of the candle.
vwap: The volume-weighted average price of the candle.
volume: The volume of the candle in units of the base asset.
candle_usd_volume: The volume of the candle in units of U.S. dollars.
candle_trades_count: The number of trades in the candle interval.
Total Exchange Spot Volume - Exchange Metrics
We can retrieve the overall volume on the exchange using our exchange_metrics endpoint.
coinbase_volume = client.get_exchange_metrics(
exchanges="coinbase",
metrics ="volume_reported_spot_usd_1d",
start_time="2022-08-10",
end_time="2022-08-17"
).to_dataframe()coinbase_volume exchange time volume_reported_spot_usd_1d
0 coinbase 2022-08-10 00:00:00+00:00 2364732395.45783
1 coinbase 2022-08-11 00:00:00+00:00 2388044971.16654
2 coinbase 2022-08-12 00:00:00+00:00 1568920157.28374
3 coinbase 2022-08-13 00:00:00+00:00 1564683366.92133
4 coinbase 2022-08-14 00:00:00+00:00 2093992312.94672
5 coinbase 2022-08-15 00:00:00+00:00 2514301745.80601
6 coinbase 2022-08-16 00:00:00+00:00 1978781752.31132
7 coinbase 2022-08-17 00:00:00+00:00 2353956243.32178Example 3: Spot order book depth

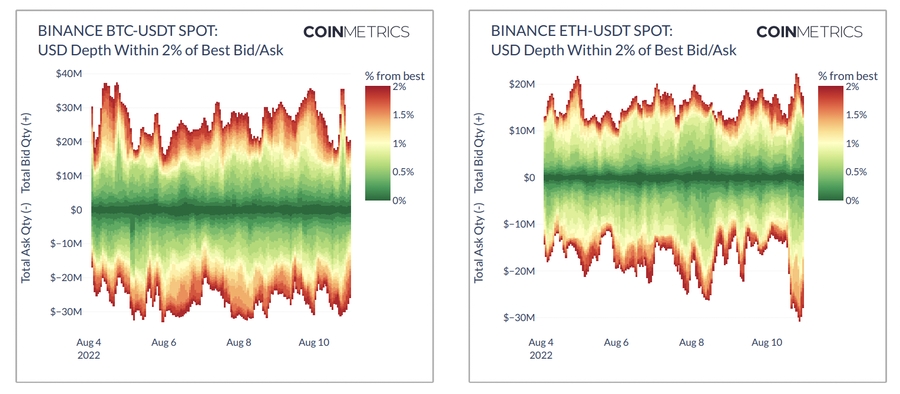

Fig. 3 - Binance order book depth from State of the Market
Foundational Data Types - Order Book Snapshots
Exchange order book data is one of the most foundational data types in the crypto industry— arguably, even more foundational than trades data, as two orders must be matched for a trade to occur. Order book data is useful for various entities, including market makers, systematic or quantitative traders, and funds studying trade execution patterns.
Coin Metrics stores three types of order book snapshots. One type consists of a snapshot of the top 100 bids and top 100 asks taken once every 10 seconds for major markets. The second type consists of a full order book snapshot (every bid and every ask) taken once every hour for all markets. The third is a snapshot where the price is +/-10% of mid-price taken once every 10 seconds. All of these snapshots are served through our /timeseries/market-orderbooks endpoint.
top100_snapshot = client.get_market_orderbooks(
markets="coinbase-btc-usd-spot",
depth_limit=100, # For full order book depth, pass the parameter "full_book".
# For 10% of depth (where the price is within +/-10 % of mid-price), pass the parameter "10pct_mid_price".
limit_per_market=5,
paging_from="end"
).to_dataframe()top100_snapshot market time coin_metrics_id \
0 coinbase-btc-usd-spot 2024-10-25 19:47:40+00:00 1729885660000000-0
1 coinbase-btc-usd-spot 2024-10-25 19:47:50+00:00 1729885670000000-0
2 coinbase-btc-usd-spot 2024-10-25 19:48:00+00:00 1729885680000000-0
3 coinbase-btc-usd-spot 2024-10-25 19:48:10+00:00 1729885690000000-0
4 coinbase-btc-usd-spot 2024-10-25 19:48:20+00:00 1729885700000000-0
asks \
0 [{'price': '66924.57', 'size': '0.00420518'}, ...
1 [{'price': '66912.05', 'size': '0.08986286'}, ...
2 [{'price': '66894.65', 'size': '0.06726527'}, ...
3 [{'price': '66875.86', 'size': '0.40178901'}, ...
4 [{'price': '66857.83', 'size': '0.00053574'}, ...
bids \
0 [{'price': '66920.85', 'size': '0.00081'}, {'p...
1 [{'price': '66912.04', 'size': '0.00284986'}, ...
2 [{'price': '66894.64', 'size': '0.00015879'}, ...
3 [{'price': '66875.85', 'size': '0.00015736'}, ...
4 [{'price': '66857.82', 'size': '0.07172'}, {'p...
database_time
0 2024-10-25 19:47:40.403698+00:00
1 2024-10-25 19:47:50.354886+00:00
2 2024-10-25 19:48:00.501666+00:00
3 2024-10-25 19:48:10.338177+00:00
4 2024-10-25 19:48:20.357161+00:00 bids = eval(top100_snapshot.bids[0])
bids[0:10][{'price': '66920.85', 'size': '0.00081'},
{'price': '66918.17', 'size': '0.0001607'},
{'price': '66918.16', 'size': '0.15000424'},
{'price': '66918.15', 'size': '0.49999905'},
{'price': '66917.92', 'size': '0.00001495'},
{'price': '66916.15', 'size': '0.00002241'},
{'price': '66914.96', 'size': '0.04797143'},
{'price': '66914.58', 'size': '0.00001495'},
{'price': '66912.31', 'size': '0.1221577'},
{'price': '66912.3', 'size': '0.04763478'}]Market Quotes - Best Bid & Asks
As an added convenience, we also serve the top bid/ask via a separate timeseries/market-quotes endpoint. Quotes are derived from our order book snapshots, so they are available at the same 10s intervals.
btc_quotes = client.get_market_quotes(
markets="coinbase-btc-usd-spot",
limit_per_market=5,
paging_from="end"
).to_dataframe()btc_quotes market time coin_metrics_id \
0 coinbase-btc-usd-spot 2024-10-25 19:47:40+00:00 1729885660000000-0
1 coinbase-btc-usd-spot 2024-10-25 19:47:50+00:00 1729885670000000-0
2 coinbase-btc-usd-spot 2024-10-25 19:48:00+00:00 1729885680000000-0
3 coinbase-btc-usd-spot 2024-10-25 19:48:10+00:00 1729885690000000-0
4 coinbase-btc-usd-spot 2024-10-25 19:48:20+00:00 1729885700000000-0
ask_price ask_size bid_price bid_size
0 66924.57 0.004205 66920.85 0.00081
1 66912.05 0.089863 66912.04 0.00285
2 66894.65 0.067265 66894.64 0.000159
3 66875.86 0.401789 66875.85 0.000157
4 66857.83 0.000536 66857.82 0.07172 Note: We now also offer every quote update via the new Coin Metrics flat file application.
Example 4: Futures data types
We offer futures data for 3,000+ markets across top derivatives trading venues such as Binance, CME, FTX, BitMEX, Huobi, Bybit, etc. Supported data types include liquidations, contract prices, open interest, candles, volume, funding rates, and more.

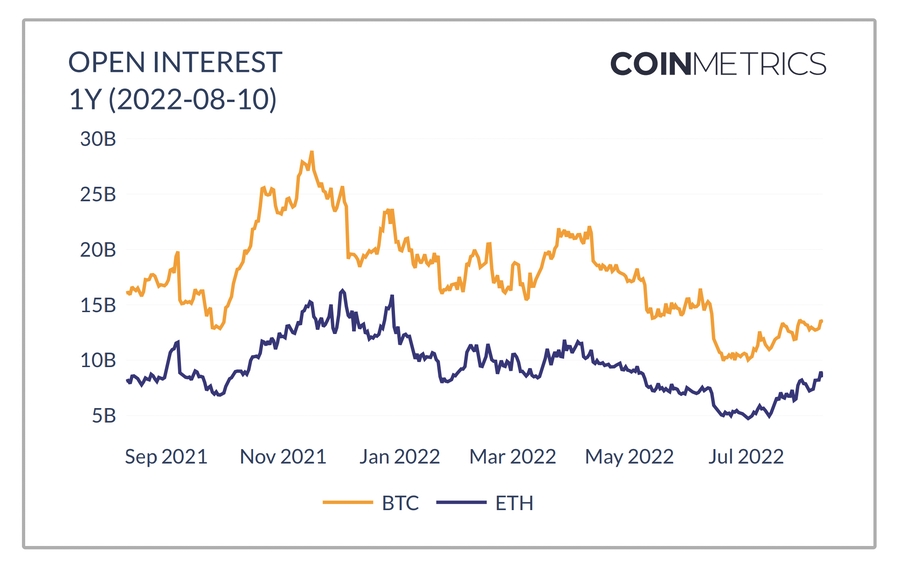

Fig. 4 - Bitcoin and Ethereum futures open interest from State of the Market
Market Open Interest - Total Contracts Outstanding
Open interest represents the number of contracts that are currently outstanding and not settled for a specific derivatives market.
oi_btc_perp = client.get_market_open_interest(
markets="binance-BTCUSD_PERP-future",
end_time="2022-08-17",
limit_per_market=5,
paging_from="end"
).to_dataframe()oi_btc_perp market time contract_count \
0 binance-BTCUSD_PERP-future 2022-08-17 23:55:00+00:00 3982211
1 binance-BTCUSD_PERP-future 2022-08-17 23:56:00+00:00 3981078
2 binance-BTCUSD_PERP-future 2022-08-17 23:57:00+00:00 3979201
3 binance-BTCUSD_PERP-future 2022-08-17 23:58:00+00:00 3979191
4 binance-BTCUSD_PERP-future 2022-08-17 23:59:00+00:00 3979133
value_usd database_time exchange_time
0 398221100 2022-08-17 23:55:11.890405+00:00 2022-08-17 23:55:00+00:00
1 398107800 2022-08-17 23:56:30.226528+00:00 2022-08-17 23:56:00+00:00
2 397920100 2022-08-17 23:57:08.240922+00:00 2022-08-17 23:57:00+00:00
3 397919100 2022-08-17 23:58:18.250239+00:00 2022-08-17 23:58:00+00:00
4 397913300 2022-08-17 23:59:07.291820+00:00 2022-08-17 23:59:00+00:00 Aggregated Open Interest - Daily by Asset & Contract Type
In addition to querying open interest for specific markets/contracts, the get_asset_metrics endpoint can also be used to retrieve aggregated open interest. Our reported future open interest metric is an aggregation of the reported future open interest from all futures exchanges in CM"s coverage universe.
We offer aggregated futures open interest for the following futures contract types:
Reported Future Open Interest
Reported Perpetual Future Open Interest
Reported Non-Perpetual Future Open Interest
Reported Coin-Margined Future Open Interest
Reported Tether-Margined Future Open Interest
oi_btc_eth = client.get_asset_metrics(
assets="btc,eth",
metrics="open_interest_reported_future_usd,open_interest_reported_future_nonperpetual_usd,open_interest_reported_future_perpetual_usd",
frequency="1d",
limit_per_asset=3,
paging_from="end"
).to_dataframe()oi_btc_eth asset time \
0 btc 2024-10-23 00:00:00+00:00
1 btc 2024-10-24 00:00:00+00:00
2 btc 2024-10-25 00:00:00+00:00
3 eth 2024-10-23 00:00:00+00:00
4 eth 2024-10-24 00:00:00+00:00
5 eth 2024-10-25 00:00:00+00:00
open_interest_reported_future_nonperpetual_usd \
0 13923479711.9669
1 13453533211.895201
2 13392581425.7694
3 1535153876.09309
4 1473483638.19916
5 1451292649.13502
open_interest_reported_future_perpetual_usd \
0 19982575374.762501
1 19754715551.441399
2 20179456440.591499
3 9517890065.12204
4 9292600168.441351
5 9313906648.995859
open_interest_reported_future_usd
0 33906055086.729401
1 33208248763.336601
2 33572037866.360901
3 11053043941.215099
4 10766083806.640499
5 10765199298.130899 Perpetual Futures Funding Rates
Funding rates are a mechanism that exchanges use to ensure that perpetual futures trade at a price that is close to the price of the underlying spot markets. The funding rate is used to calculate the funding fee which long position holders pay short position holders, or vice versa, as a way to incentivize market participants to take positions that keep perpetual futures prices close to the underlying.
funding_btc_perp = client.get_market_funding_rates(
markets="binance-BTCUSD_PERP-future",
end_time="2022-08-17",
limit_per_market=5
).to_dataframe()funding_btc_perp market time \
0 binance-BTCUSD_PERP-future 2020-08-10 16:00:00+00:00
1 binance-BTCUSD_PERP-future 2020-08-11 00:00:00+00:00
2 binance-BTCUSD_PERP-future 2020-08-11 08:00:00.008000+00:00
3 binance-BTCUSD_PERP-future 2020-08-11 16:00:00+00:00
4 binance-BTCUSD_PERP-future 2020-08-12 00:00:00+00:00
database_time rate period interval
0 2020-12-02 10:49:37.530167+00:00 0.0001 08:00:00 08:00:00
1 2020-12-02 10:49:37.530167+00:00 0.0001 08:00:00 08:00:00
2 2020-12-02 10:49:37.530167+00:00 0.0001 08:00:00 08:00:00
3 2020-12-02 10:49:37.530167+00:00 0.0001 08:00:00 08:00:00

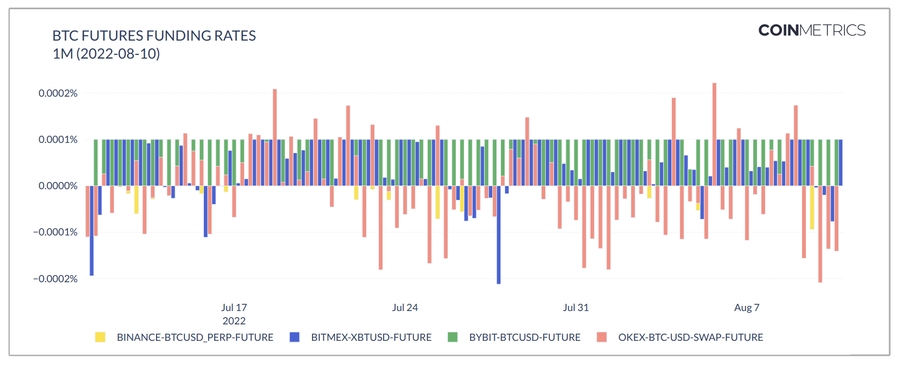

4 2020-12-02 10:49:37.530167+00:00 0.0001 08:00:00 08:00:00 Fig. 5 - Bitcoin perpetual futures funding rates from State of the Market
Futures Basis Metrics - Aggregated by Exchange-Asset
The basis is the annualized percent difference between the price of a theoretical futures contract and the price of its underlying spot market. Coin Metrics calculates this for several exchange-assets such as binance-btc and ftx-eth. We calculate four basis metrics at defined days to expiration: 30 day, 60 day, 90 day, and 120 day.
basis_binance = client.get_exchange_asset_metrics(
exchange_assets="binance-btc",
metrics="basis_annualized_30d_exp,basis_annualized_60d_exp,basis_annualized_90d_exp"
).to_dataframe()basis_binance.tail() exchange_asset time basis_annualized_30d_exp \
1592 binance-btc 2024-10-21 00:00:00+00:00 0.104488
1593 binance-btc 2024-10-22 00:00:00+00:00 0.095617
1594 binance-btc 2024-10-23 00:00:00+00:00 0.103859
1595 binance-btc 2024-10-24 00:00:00+00:00 0.103878
1596 binance-btc 2024-10-25 00:00:00+00:00 0.108495
basis_annualized_60d_exp basis_annualized_90d_exp
1592 0.104552 0.098069
1593 0.095675 0.092418
1594 0.103922 0.096754
1595 0.103941 0.100998

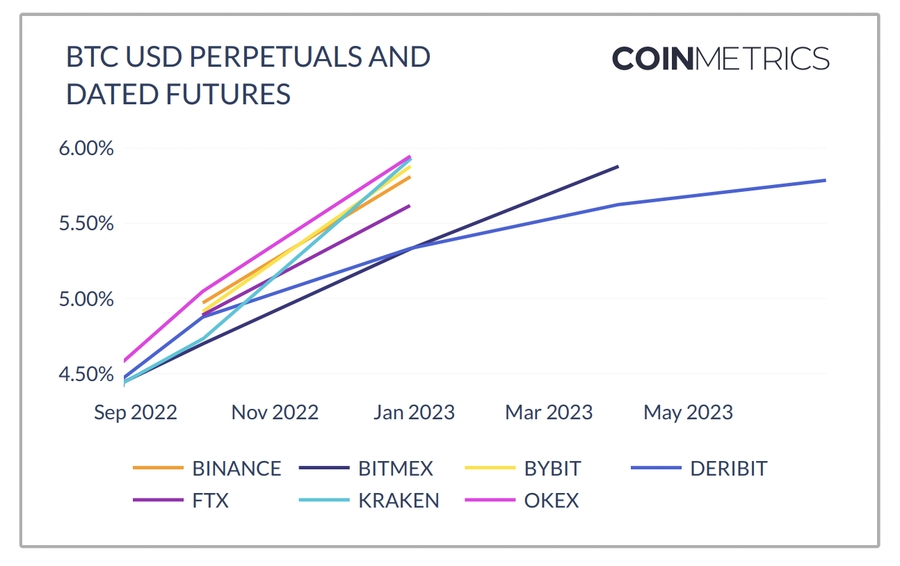

1596 0.108561 0.102192 Fig. 6 - Bitcoin futures basis from State of the Market
Futures Liquidations - Individual Orders/Trades
Exchanges which offer futures markets utilize a risk management system that will attempt to close a user’s position before the point at which the user begins to owe more than what is in the user"s account. The trade or order that closes the user"s position is referred to as a liquidation.
Some exchanges report liquidations orders in which they will report the creation of a liquidation order when a trader’s position initially enters liquidation. When a trader’s position enters liquidation, an exchange will typically enter a limit order at the trader"s bankruptcy price. The order will show the amount of the position that is being liquidated and the liquidation price, but will not represent the matched trades that are executed as a result of the liquidation.
Other exchanges will report liquidation trades which represent the actual matched trades as a result of a liquidation order but will not report liquidation orders.
Some exchanges will report both liquidation orders and liquidation trades.
mkt_liqs_binance = client.get_market_liquidations(
markets="binance-BTCUSDT-future",
limit_per_market=3
).to_dataframe()mkt_liqs_binance.head() market time \
0 binance-BTCUSDT-future 2019-09-10 19:36:50.009000+00:00
1 binance-BTCUSDT-future 2019-09-10 19:38:06.010000+00:00
2 binance-BTCUSDT-future 2019-09-11 06:51:13.010000+00:00
coin_metrics_id amount price type \
0 1568144210009000000 0.199 10013.89 trade
1 1568144286010000000 0.04 9952.16 trade
2 1568184673010000000 0.04 9944.65 trade
database_time side
0 2020-10-08 06:03:35.854962+00:00 sell
1 2020-10-08 06:03:35.854962+00:00 sell
2 2020-10-08 06:03:35.854962+00:00 sell Futures Liquidations - Aggregated Daily or Hourly
liqs_binance = client.get_market_metrics(
markets="binance-BTCUSDT-future",
metrics="liquidations_reported_future_buy_usd_1d"
).to_dataframe()liqs_binance.head() market time \
0 binance-BTCUSDT-future 2019-09-12 00:00:00+00:00
1 binance-BTCUSDT-future 2019-09-19 00:00:00+00:00
2 binance-BTCUSDT-future 2019-09-20 00:00:00+00:00
3 binance-BTCUSDT-future 2019-09-21 00:00:00+00:00
4 binance-BTCUSDT-future 2019-09-23 00:00:00+00:00
liquidations_reported_future_buy_usd_1d
0 114.5749
1 268916.41422
2 18519.28155
3 8795.16

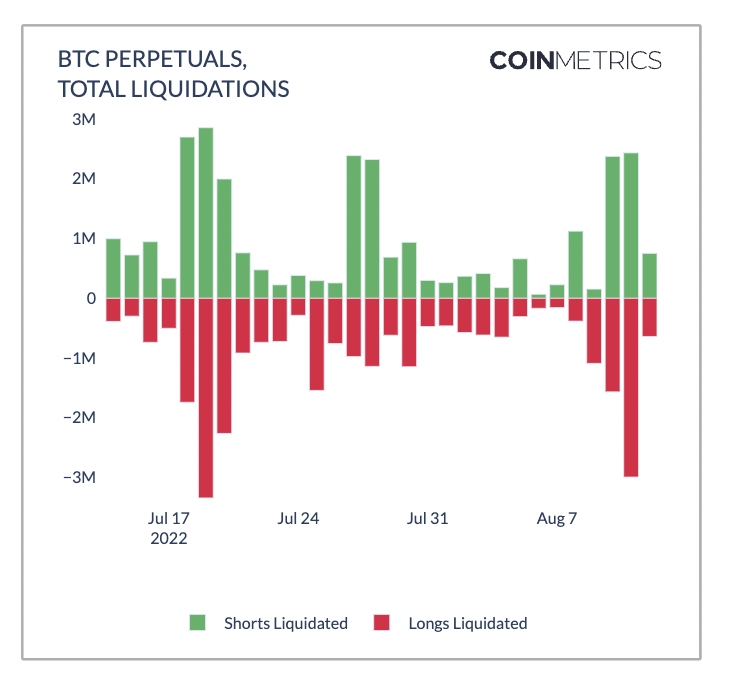

4 62820.22767 Fig. 7 - Bitcoin perpetual futures liquidations from State of the Market
Example 5: Options data types
We offer options data from two of the most liquid options trading venues, Deribit and OKX. Supported data types include implied volatility, trades, open interest, contract prices, contract specifications, quotes, and greeks. We recently expanded our options coverage to include several new data types from Deribit and added several new API endpoints to serve this data.
Options Contracts - Implied Volatility
iv_deribit = client.get_market_implied_volatility(
markets="deribit-BTC-18AUG22-*-option",
end_time="2022-08-17",
limit_per_market=1
).to_dataframe()iv_deribit.head() market time \
0 deribit-BTC-18AUG22-19000-C-option 2022-08-16 08:04:00+00:00
1 deribit-BTC-18AUG22-19000-P-option 2022-08-16 08:04:00+00:00
2 deribit-BTC-18AUG22-20000-C-option 2022-08-16 08:04:00+00:00
3 deribit-BTC-18AUG22-20000-P-option 2022-08-16 08:04:00+00:00
4 deribit-BTC-18AUG22-21000-C-option 2022-08-16 08:04:00+00:00
database_time iv_bid iv_ask iv_mark \
0 2022-08-16 08:04:59.435418+00:00 0.0 0.0 1.0
1 2022-08-16 08:04:58.430009+00:00 0.0 2.5561 1.0
2 2022-08-16 08:04:57.429870+00:00 0.0 0.0 1.0
3 2022-08-16 08:04:58.430009+00:00 0.0 2.0536 1.0
4 2022-08-16 08:04:58.430009+00:00 0.0 0.0 1.0
exchange_time
0 2022-08-16 08:04:58.622000+00:00
1 2022-08-16 08:04:57.613000+00:00
2 2022-08-16 08:04:56.605000+00:00
3 2022-08-16 08:04:57.612000+00:00

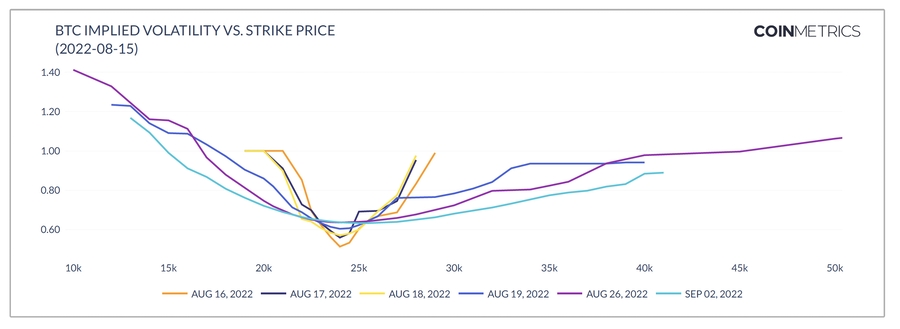

4 2022-08-16 08:04:57.620000+00:00 Fig. 8 - Bitcoin "Volatility Smile" from State of the Market
Options Contracts - Market Greeks
greeks_deribit = client.get_market_greeks(
markets="deribit-BTC-18AUG22-*-option",
end_time="2022-08-17",
limit_per_market=1
).to_dataframe()greeks_deribit.head() market time \
0 deribit-BTC-18AUG22-19000-C-option 2022-08-16 08:04:00+00:00
1 deribit-BTC-18AUG22-19000-P-option 2022-08-16 08:04:00+00:00
2 deribit-BTC-18AUG22-20000-C-option 2022-08-16 08:04:00+00:00
3 deribit-BTC-18AUG22-20000-P-option 2022-08-16 08:04:00+00:00
4 deribit-BTC-18AUG22-21000-C-option 2022-08-16 08:04:00+00:00
database_time vega theta rho delta \
0 2022-08-16 08:04:59.435418+00:00 0.03878 -0.97127 1.03845 0.99938
1 2022-08-16 08:04:58.430009+00:00 0.03875 -0.30251 -0.00084 -0.00062
2 2022-08-16 08:04:57.429870+00:00 0.287 -7.18741 1.08637 0.99435
3 2022-08-16 08:04:58.430009+00:00 0.28587 -3.27365 -0.00759 -0.00563
4 2022-08-16 08:04:58.430009+00:00 1.22414 -30.65678 1.1075 0.9696
gamma exchange_time
0 0.0 2022-08-16 08:04:58.622000+00:00
1 0.0 2022-08-16 08:04:57.613000+00:00
2 0.00001 2022-08-16 08:04:56.605000+00:00
3 0.00001 2022-08-16 08:04:57.612000+00:00

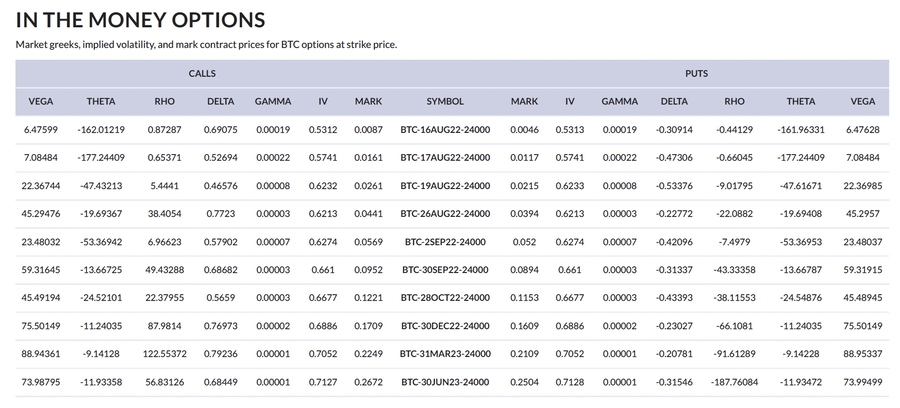

4 0.00004 2022-08-16 08:04:57.620000+00:00 Fig. 9 - Option Chain from State of the Market
Options Contracts - Market Quotes
quotes_deribit = client.get_market_quotes(
markets="deribit-BTC-18AUG22-*-option",
end_time="2022-08-17",
limit_per_market=3
).to_dataframe()quotes_deribit.head() market time \
0 deribit-BTC-18AUG22-19000-C-option 2022-08-16 08:04:00+00:00
1 deribit-BTC-18AUG22-19000-C-option 2022-08-16 08:05:00+00:00
2 deribit-BTC-18AUG22-19000-C-option 2022-08-16 08:06:00+00:00
3 deribit-BTC-18AUG22-19000-P-option 2022-08-16 08:04:00+00:00
4 deribit-BTC-18AUG22-19000-P-option 2022-08-16 08:05:00+00:00
coin_metrics_id ask_price ask_size bid_price bid_size
0 1660637040000000-0 0.0 0.0 0.0 0.0
1 1660637100000000-0 0.0 0.0 0.0 0.0
2 1660637160000000-0 0.0 0.0 0.0 0.0
3 1660637040000000-0 0.1 0.0085 0.0 0.0
4 1660637100000000-0 10.0 0.0005 0.0 0.0 Options Contracts - Market Open Interest
oi_deribit = client.get_market_open_interest(
markets="deribit-BTC-30DEC22-*-option",
paging_from="end",
limit_per_market=1
).to_dataframe()oi_deribit.sort_values("value_usd").tail() market time \
62 deribit-BTC-30DEC22-35000-C-option 2022-12-30 07:59:00+00:00
7 deribit-BTC-30DEC22-12000-P-option 2022-12-30 07:59:00+00:00
15 deribit-BTC-30DEC22-15000-P-option 2022-12-30 07:59:00+00:00
1 deribit-BTC-30DEC22-10000-P-option 2022-12-30 07:59:00+00:00
54 deribit-BTC-30DEC22-30000-C-option 2022-12-30 07:59:00+00:00
contract_count value_usd database_time \
62 6564.4 108156695.5 2022-12-30 07:59:11.450250+00:00
7 6609.7 108902937.431 2022-12-30 07:59:21.456460+00:00
15 6873.1 113242845.144 2022-12-30 07:59:12.451403+00:00
1 7731.2 127381029.376 2022-12-30 07:59:21.456460+00:00
54 7836.8 129120997.632 2022-12-30 07:59:17.454662+00:00
exchange_time
62 2022-12-30 07:59:00+00:00
7 2022-12-30 07:59:00+00:00
15 2022-12-30 07:59:00+00:00
1 2022-12-30 07:59:00+00:00
54 2022-12-30 07:59:00+00:00 Fig. 10 - Option Open Interest from State of the Market
Last updated
Was this helpful?
